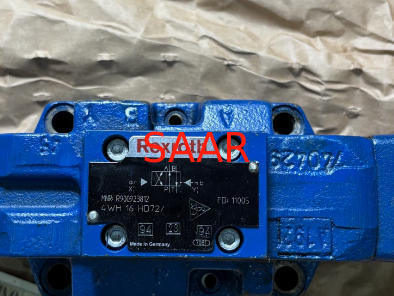

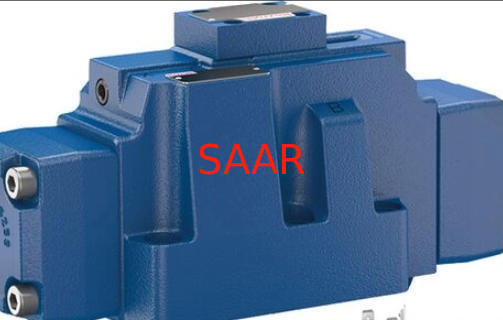

R900923871 4WH16D7X 4WH16D7X Directional Spool Valves, Pilot Operated, With Hydraulic 4WH

Produktdetails:

Herkunftsort:	Deutschland
Markenname:	Rexroth
Modellnummer:	R900923871 4WH16D7X 4WH16D7X

Zahlung und Versand AGB:

Min Bestellmenge:	1
Preis:	On request
Verpackung Informationen:	Standardpapierkasten
Lieferzeit:	7-10 Tage
Zahlungsbedingungen:	T/T, Western Union
Versorgungsmaterial-Fähigkeit:	100 Prozent pro Monat

Kontakt

Ausführliche Produkt-Beschreibung

Mnr:

R900923871

Modell Nr.:

4WH16D7X 4WH16D7X

Hervorheben:

Rexroth directional spool valves

pilot operated hydraulic valves

4WH16D7X spool valves with hydraulic

Directional spool valves, pilot operated, with hydraulic 4WH

Size 10 … 32
Component series 4X, 7X, 6X
Maximum operating pressure 350 bar
Maximum flow 1100 l/min

Features

4/3-, 4/2- or 3/2-way version
Types of actuation (internal or external pilot control):
– Electro-hydraulic (type WEH)
– Hydraulic (type WH)
For subplate mounting
Porting pattern according to ISO 4401
Spring or pressure centering, spring end position or hydraulic end position
Wet-pin DC or AC solenoids, optional
Electric connection as single or central connection
Optional versions:
- Manual override
- Switching time adjustment
- Preload valve in channel P of the main valve
- Stroke setting and/or spool position monitoring

Type Code:

01	Up to 280 bar	no code
01	Up to 350 bar	H-
Main ports
02	3-way version	3
02	4-way version	4
Type of actuation
03	Hydraulic	WH
03	Electro-hydraulic	WEH
Size
04	NG10	10
	NG16	16
	NG25 (version "W.H 22")	22
	NG25 (version "W.H 25")	25
	Size 32	32
Spool return in the main valve
05	By means of springs	no code
05	Hydraulic ¹⁾	H
06	Symbols; for the possible version, see "Symbols/Circuit diagrams"
Component series
07	Component series 40 … 49 (40 … 49: unchanged installation and connection dimension) – NG10	4X
	Component series 60 … 69 (60 … 69: unchanged installation and connection dimension) – NG25 ("W.H 25") and NG32	6X
	Component series 70 … 79 (70 … 79: unchanged installation and connection dimension) – NG16 (from series 72) andNG25 ("W.H 22")	7X
Control spool return in the pilot control valve with 2 spool positions and 2 solenoids (only possible with symbols A, B, C, D, K, Z and hydraulic control spool return in the main valve)
08	With spring return	no code
	Without spring return	O
	Without spring return with detent ²⁾	OF
Pilot control valve 2)
09	High-power valve (data sheet 23178)	6E
Electrical voltages ²⁾
10	Direct voltage 24 V	G24
10	Alternating voltage 230 V, 50/60 Hz	W230
Manual override
11	Without manual override	no code
	With manual override	N
	With concealed manual override	N9
Corrosion resistance (outside)
12	None (valve housing primed)	no code
12	Improved corrosion protection (240 h salt spray test according to EN ISO 9227)	J3
Pilot oil flow ³⁾
13	External pilot oil supply, external pilot oil return ⁴⁾	no code
	Internal pilot oil supply, external pilot oil return ^{4; 5)}	E
	Pilot oil supply internal, pilot oil return internal ⁵⁾	ET
	External pilot oil supply, internal pilot oil return ⁴⁾	T
Switching time adjustment
14	Without switching time adjustment	no code
	Switching time adjustment as supply control	S
	Switching time adjustment as discharge control	S2
Electrical connection ²⁾
15	Individual connection
15	Without mating connector, connector according to DIN EN 175301-803	K4⁶⁾
Spool position monitoring
16	Without position switch	no code
	Monitored spool position "a"	QMAG24
	Monitored spool position "b"	QMBG24
	Monitored spool position "a" and "b"	QMABG24
	Monitored rest position	QM0G24
Stroke setting
17	Stroke setting on valve side A and B	10
	Stroke setting on valve side A	11
	Stroke setting on valve side B	12
Throttle insert ²⁾
18	Without throttle insert	no code
	Throttle Ø 0.8 mm	B08
	Throttle Ø 1.0 mm	B10
	Throttle Ø 1.2 mm	B12
	Throttle Ø 1.5 mm	B15
	Throttle Ø 2.0 mm	B20
	Throttle Ø 2.5 mm	B25
preload valve (not for NG10) ²⁾
19	Without pre-decompression	no code
19	With preload valve	P4,5
20	Without pressure reducing valve	no code
20	With pressure reducing valve	D3⁷⁾
Seal material (observe compatibility of seals with hydraulic fluid used, see "Technical data")
21	NBR seals	no code
21	FKM seals	V
22	Further details in the plain text	*
