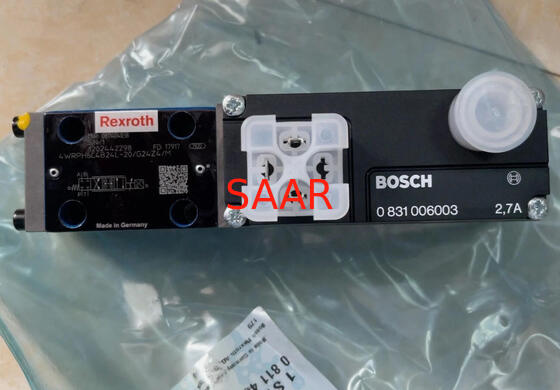

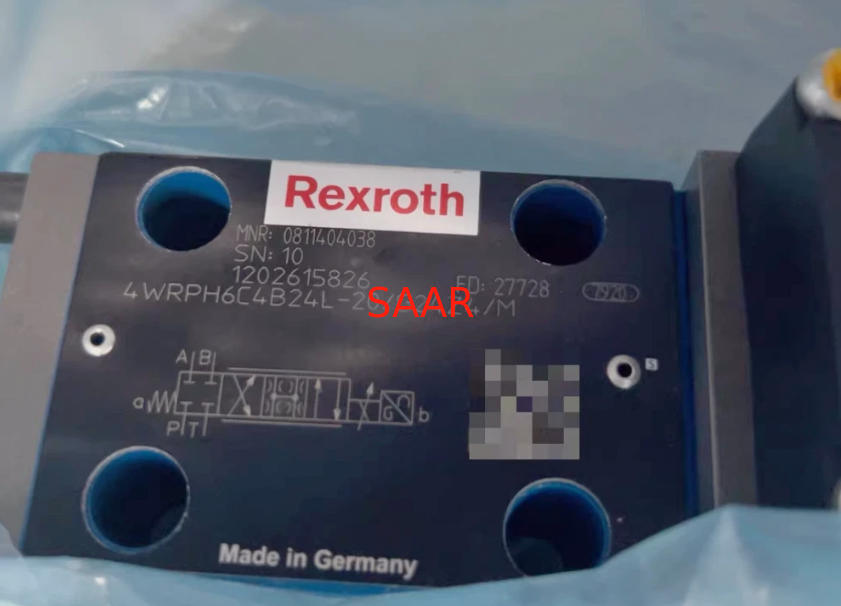

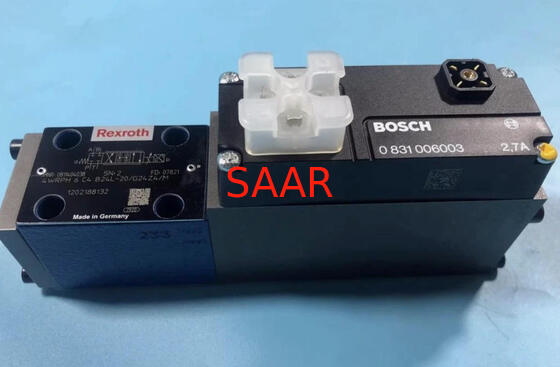

Name: 0811404038 4WRPH6C4B24L-20/G24Z4/M 4WRPH6C4B24L-2X/G24Z4/M PROPORTIONAL DIRECTIONAL VALVE
Brand: Saar HK Electronic Limited
SKU: 0811404038 4WRPH6C4B24L-20/G24Z4/M 4WRPH6C4B24L-2X/G24Z4/M
Price: 950.00 USD
Availability: InStock

Startseite Produkte Rexroth Hydraulikventil

0811404038 4WRPH6C4B24L-20/G24Z4/M 4WRPH6C4B24L-2X/G24Z4/M PROPORTIONAL DIRECTIONAL VALVE

Produktdetails:

Herkunftsort:	Deutschland
Markenname:	Rexroth
Modellnummer:	0811404038 4WRPH6C4B24L-20/G24Z4/M 4WRPH6C4B24L-2X/G24Z4/M

Zahlung und Versand AGB:

Min Bestellmenge:	1
Preis:	On request
Verpackung Informationen:	Standardpapierkasten
Lieferzeit:	7-10 Tage
Zahlungsbedingungen:	T/T, Western Union
Versorgungsmaterial-Fähigkeit:	100 Prozent pro Monat

Kontakt

Ausführliche Produkt-Beschreibung

Mnr:

0811404038

Modell:

4WRPH6C4B24L-20/G24Z4/M 4WRPH6C4B24L-2X/G24Z4/M

Hervorheben:

Rexroth proportional directional valve

4WRPH6 hydraulic valve with warranty

G24Z4 directional control valve

4WRPH6 and 4WRPH10 Series PROPORTIONAL DIRECTIONAL VALVE
4/4 directional control valves, direct operated, with electrical position feedbackand integrated electronics (OBE)

4WRPH Size 6
Component series 2X
Maximum operating pressure 315 bar
Nominal flow 2 … 40 l/min

4WRPH Size 10
Component series 2X
Maximum operating pressure 315 bar
Nominal flow 50 … 100 l/min

Features
4/4 directional design
With control spool and sleeve in servo quality
Operated on one side, 4/4 fail-safe position in switched-off condition
Electric position feedback and integrated electronics (OBE), calibrated in the factory
Electrical connection 6P+PE; signal input differential amplifier with interface "A1" ±10 V or interface "F1" 4 ... 20 mA (Rsh = 200 Ω)
Use for electro-hydraulic controls in production and test systems

Type code:

01	02	03	04	05	06	07	08	09		10		11	12		13	14	15
4	WRP	E	H	6/10		B			‒	2X	/	G24	K0	/		M	*

01	4 main ports	4
02	High-response directional valve, direct operated	WRP
03
04	Control spool/sleeve	H
05	Size 10	10
06	Symbols; for the possible version, see "Symbols/Circuit diagrams"
Installation side of the inductive position transducer
07	Valve side B (standard) (see "Symbols/Circuit diagrams")	B
Rated flow at 70 bar valve pressure differential (35 bar/control edge)
08	50 l/min	50
	100 l/min	100
Flow characteristic
09	Linear	L
09	Inflected characteristic curve	P
10	Component series 20 ... 29 (20 ... 29: unchanged installation and connection dimensions) - Size 6	2X
Supply voltage of the control electronics
11	Direct voltage 24 V	G24
Electrical connection
12	Without mating connector; connector DIN 43563-AM6 Mating connectors, separate order	K0
Control electronics interface
13	Command value input ±10 V	A1
13	Command value input 4 ... 20 mA	F1
Seal material
14	NBR seals, suitable for mineral oil HL and HLP according to DIN 51524	M
15	Further details in the plain text	*

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth 4WRPH6 PROPORTIONAL DIRECTIONAL VALVE Model List:

0811404049	4WRPH6C3A04P-2X/G24Z4/M
R901449929	4WRPH6C3B12L-2X/G24Z4/V
R901402609	4WRPH6C3B24L-2X/G24Z4/M=KM
R901449927	4WRPH6C3B40L-2X/G24Z4/V
0811404514	4WRPH6C4B12L-2X/G24Z4/V
R901273566	4WRPH6C1B40L-2X/G24K0/M-750
0811404513	4WRPH6C1B40L-2X/G24Z4/M
0811404162	4WRPH6C1B40P-2X/G24Z4/M
0811404041	4WRPH6C3B02L-2X/G24Z4/M
0811404122	4WRPH6C3B04L-1X/G24Z4/M
0811404132	4WRPH6C3B04L-1X/G24Z4/V
0811404033	4WRPH6C3B04L-2X/G24Z4/M
0811404165	4WRPH6C3B04L-2X/G24Z4/M-841
0811404042	4WRPH6C3B04P-2X/G24Z4/M
R901349902	4WRPH6C3B04P-2X=G24Z4/M=00
R901097266	4WRPH6C3B08L-2X/G24Z4/M-841
0811404111	4WRPH6C3B12L-1X/G24Z4/M
R901101316	4WRPH6C3B12L-1X/G24Z4/V
0811404179	4WRPH6C3B12L-2X/G24K0/M-784
0811404034	4WRPH6C3B12L-2X/G24Z4/M
0811404161	4WRPH6C3B12L-2X/G24Z4/M-561
R901349900	4WRPH6C3B12L-2X=G24Z4/M=00
0811404047	4WRPH6C3B15P-2X/G24Z4/M
0811404106	4WRPH6C3B24L-1X/G24Z4/M
R901502640	4WRPH6C3B24L-1X/G24Z4/V
0811404169	4WRPH6C3B24L-2X/G24K0/M-750
0811404520	4WRPH6C3B24L-2X/G24K0/M-784
0811404035	4WRPH6C3B24L-2X/G24Z4/M
0811404164	4WRPH6C3B24L-2X/G24Z4/M-561
R901349901	4WRPH6C3B24L-2X=G24Z4/M=00
0811404043	4WRPH6C3B25P-2X/G24Z4/M
0811404113	4WRPH6C3B40L-1X/G24Z4/M
R901145222	4WRPH6C3B40L-1X/G24Z4/V
0811404170	4WRPH6C3B40L-2X/G24K0/M-750
0811404036	4WRPH6C3B40L-2X/G24Z4/M
R901527484	4WRPH6C3B40L-2X/G24Z4/M-303
0811404174	4WRPH6C3B40L-2X/G24Z4/M-561
0811404044	4WRPH6C3B40P-2X/G24Z4/M
0811404515	4WRPH6C4B02L-2X/G24Z4/M
0811404160	4WRPH6C4B04L-2X/G24Z4/M
0811404112	4WRPH6C4B12L-1X/G24Z4/M
0811404037	4WRPH6C4B12L-2X/G24Z4/M
0811404173	4WRPH6C4B15P-2X/G24K0/M-750
0811404048	4WRPH6C4B15P-2X/G24Z4/M
0811404118	4WRPH6C4B24L-1X/G24Z4/M
0811404167	4WRPH6C4B24L-2X/G24K0/M-750
0811404038	4WRPH6C4B24L-2X/G24Z4/M
R901411228	4WRPH6C4B24L-2X/G24Z4/V
0811404045	4WRPH6C4B25P-2X/G24Z4/M
0811404171	4WRPH6C4B40L-2X/G24K0/M-750
0811404039	4WRPH6C4B40L-2X/G24Z4/M
0811404178	4WRPH6C4B40P-2X/G24K0/M-750
0811404046	4WRPH6C4B40P-2X/G24Z4/M
R901498301	4WRPH6C5B24L-2X/G24Z4/M
